NISSEI DG-503MAX DMR/SSB/AM HF 1.6-60MHz & V.UHF125-525MHz 200Watt Walkie Talkie Digital SWR Watt Meter DG-503 MAX
Introduction
This SWR&Watt meter is highly accurate for measuring Forward Power, Reflected Power, and the VSWR of Analog and Digital Transceivers.
Photos:
Main Features:
1. Larger LCD (3.5”) display for easy of reading
2. Forward/Reflected Power/VSWR ratio in one push button
3. Select-able to measure DMR (TDMA),AM,SSB
4. LCD backlight Display
5. Convenient control layout for easy operation
6. Packing gift box and DC 12V wire
Specifications:
Model |
DG-503 MAX |
Freq Range |
HF:1.6-60MHz & V.UHF 125-525MHz |
Measurement (Analog Mode) |
CW,FM,FDMA |
Measurement (MAX Mode) |
DMR(TDMA),AM,SSB |
Calibration Point |
28/145/435MHz |
Power Range |
0-200W |
Accuracy |
(+/-5%) |
Minimum power for SWR |
1W |
Input/Output Connector |
SO239 |
Weight (Net) |
750g |
Insertion Loss |
Less than 0.1dB |
Testing Function |
Fwd/ref power & VSWR Ratio |
Input/Output Impedance |
50 ohm |

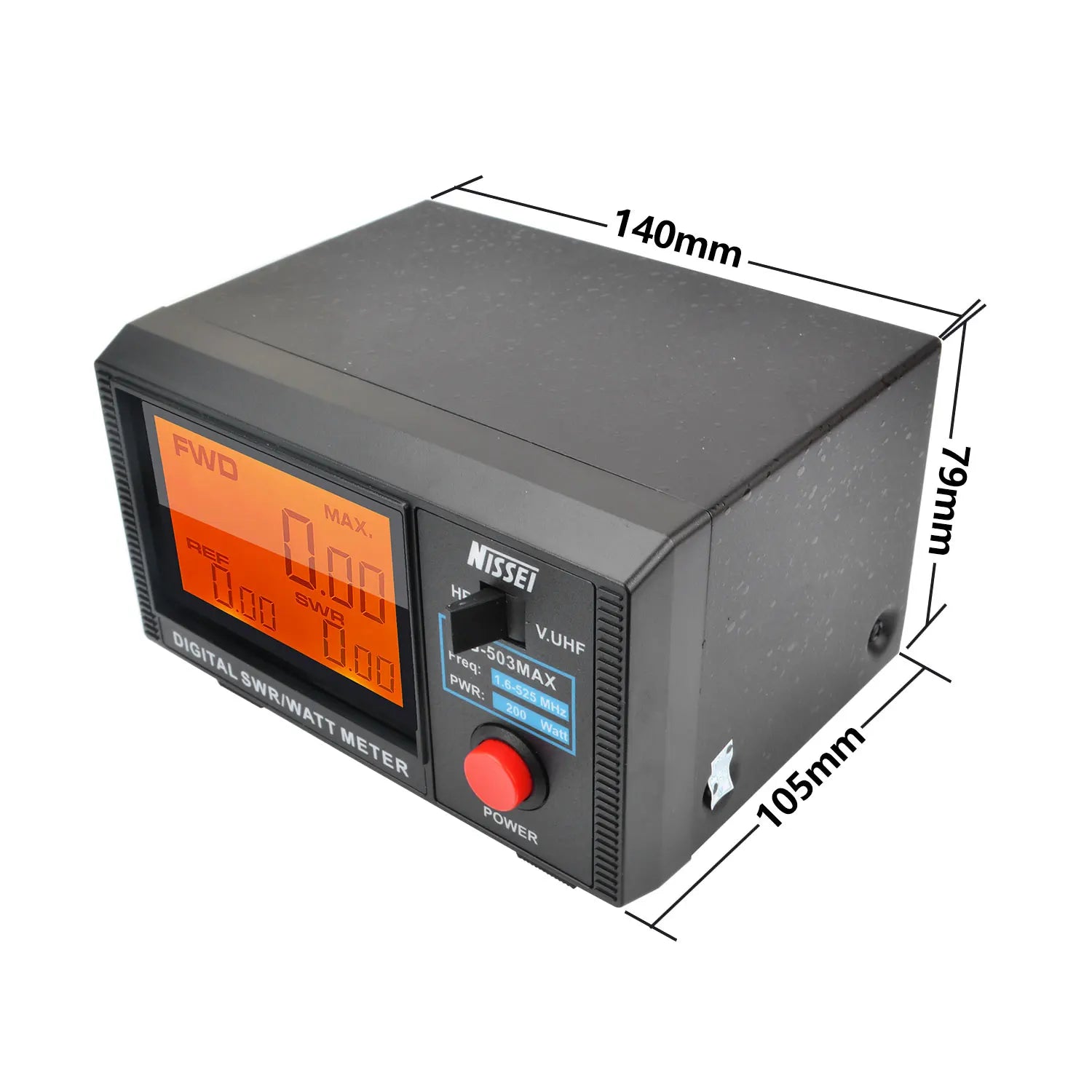

Dimension (W/H/D)mm |
140*84*122 |
Accessories |
Operation Manual, 12V DC Wire |

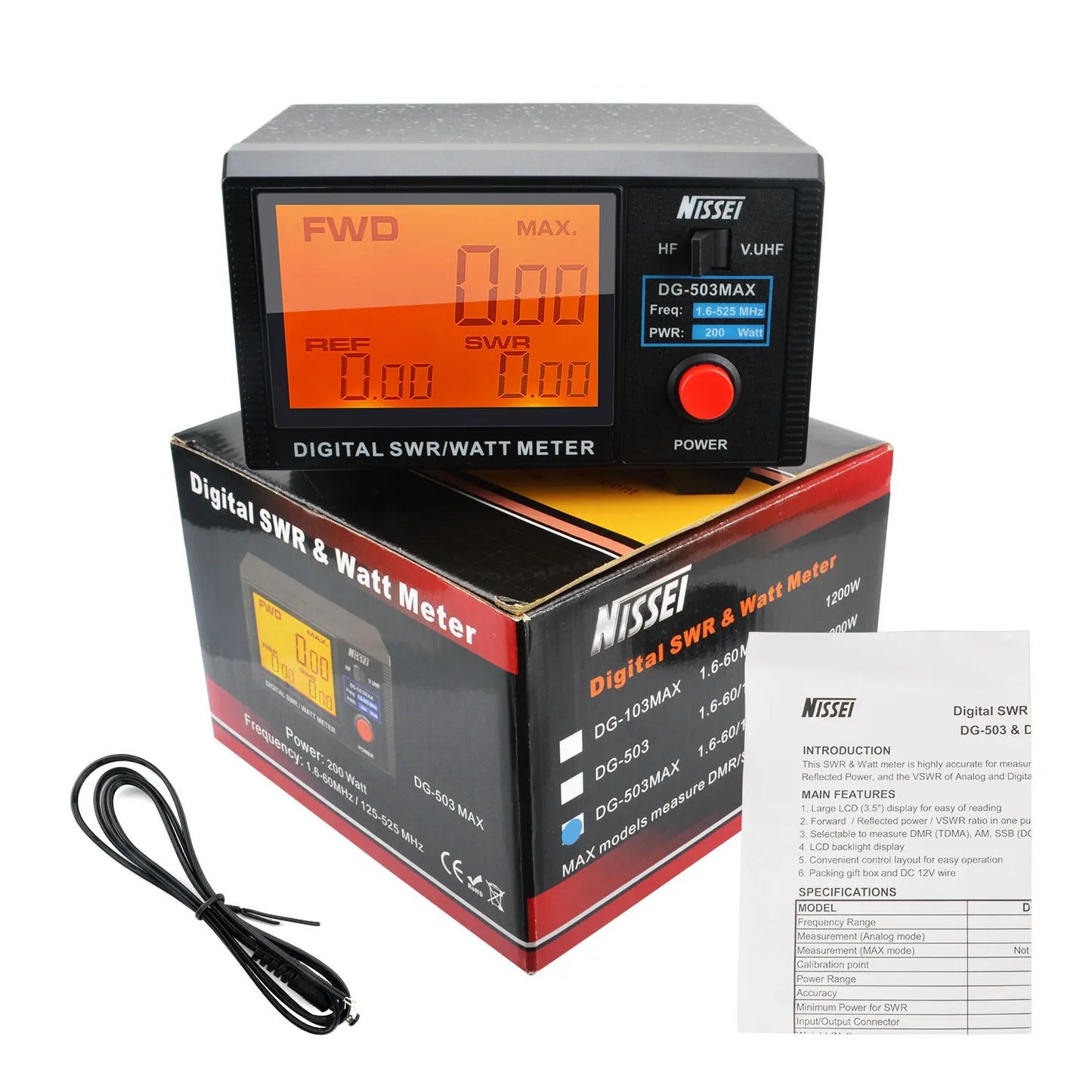

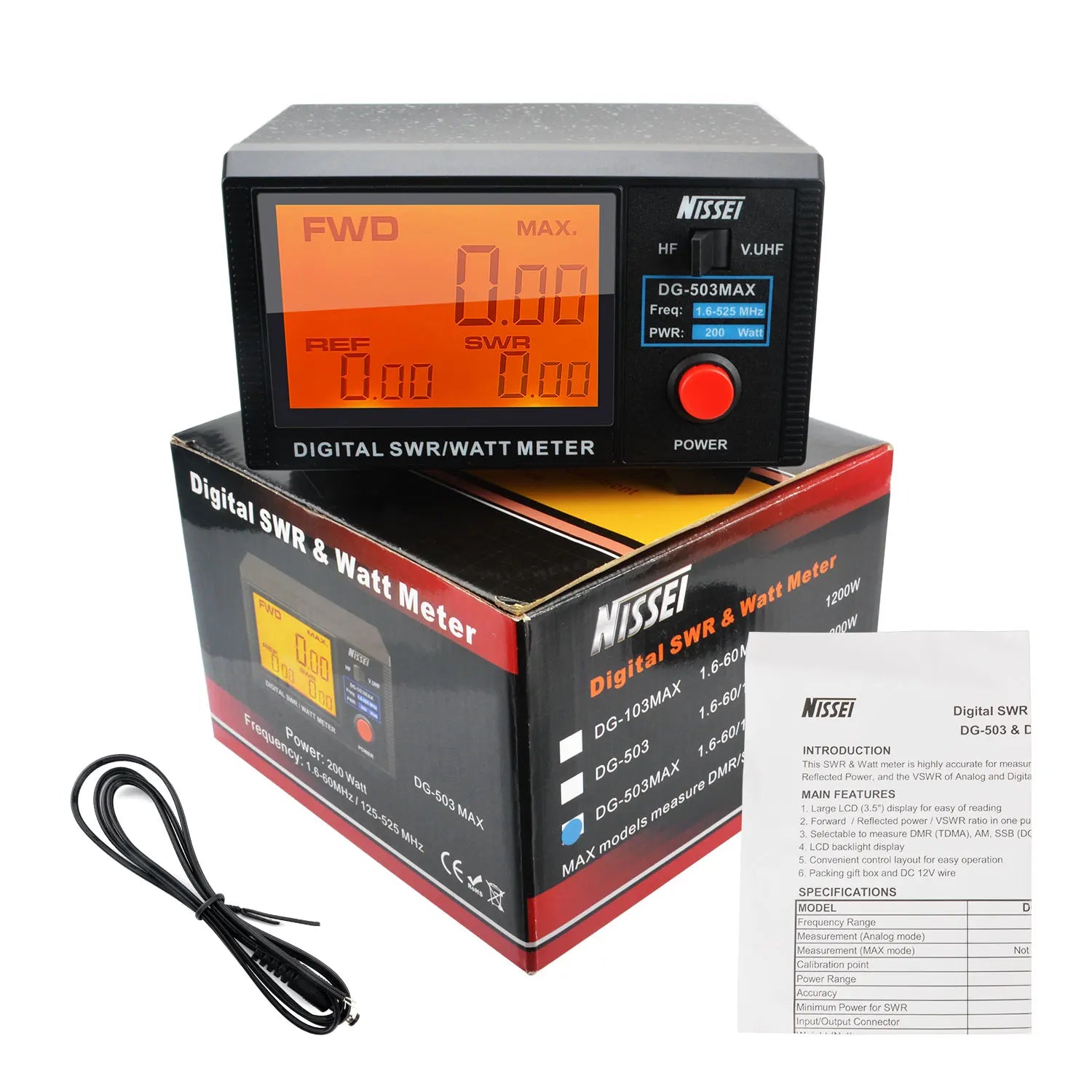

Package Contains:
1×DG-503MAX Digtial SWR/Watt Meter
1× Operation Manual
1× 12V DC wire
